DAG Run Detail Page

Clicking a specific run (from the Runs tab, DLQ, or Landing Times) opens /dags/<id>/runs/<runId> — a deep dive into that one execution.

The header shows Run Type (scheduled/manual), Execution Date, Start Time, End Time, Duration, and — when the run records one — a DAG Version Hash. The run's overall state appears as a badge beside the title. A Live indicator shows while the run is actively in progress — the page updates in real time over a WebSocket, alongside a 3-second poll while a run is running or queued, so you can watch tasks turn green without refreshing.

Two tabs:

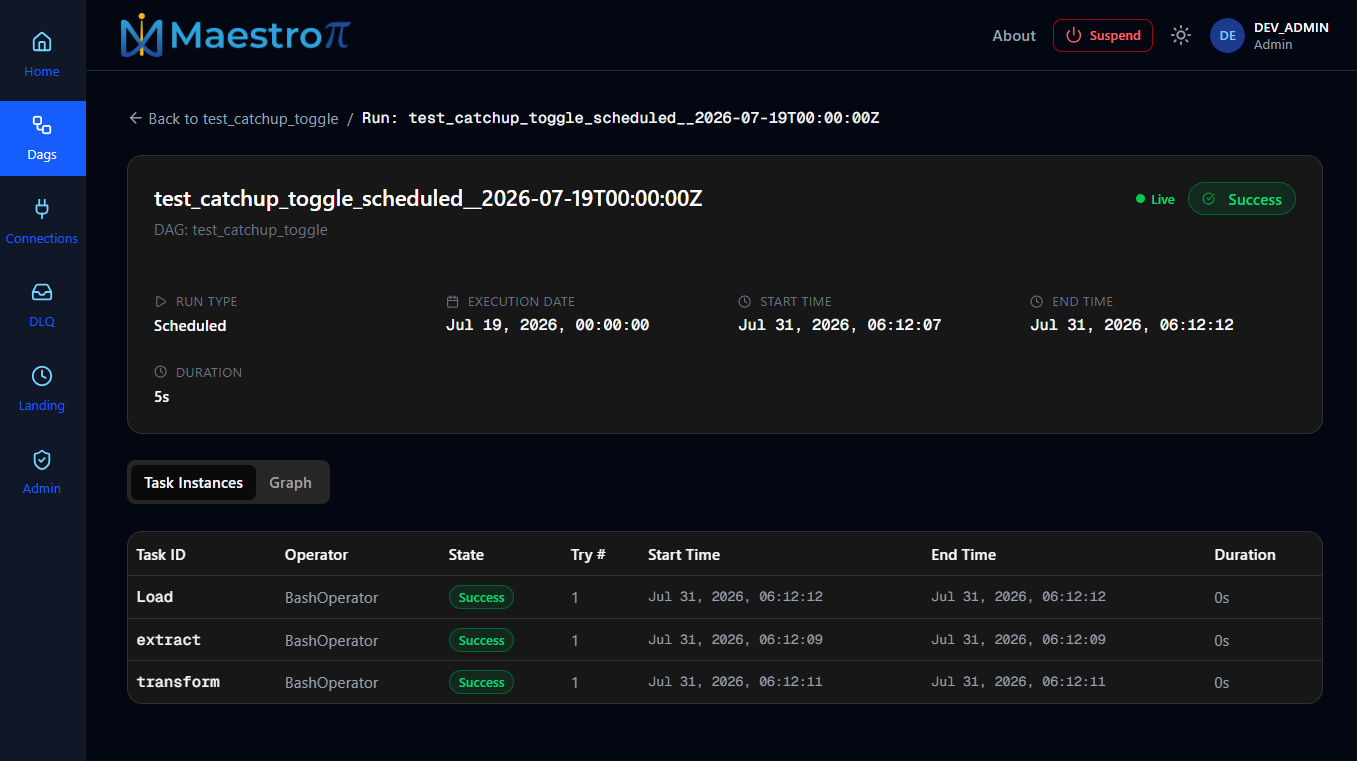

• Task Instances — a table of every task in this run: state, try number, timing, duration. Click any row to open the Task Detail Panel.

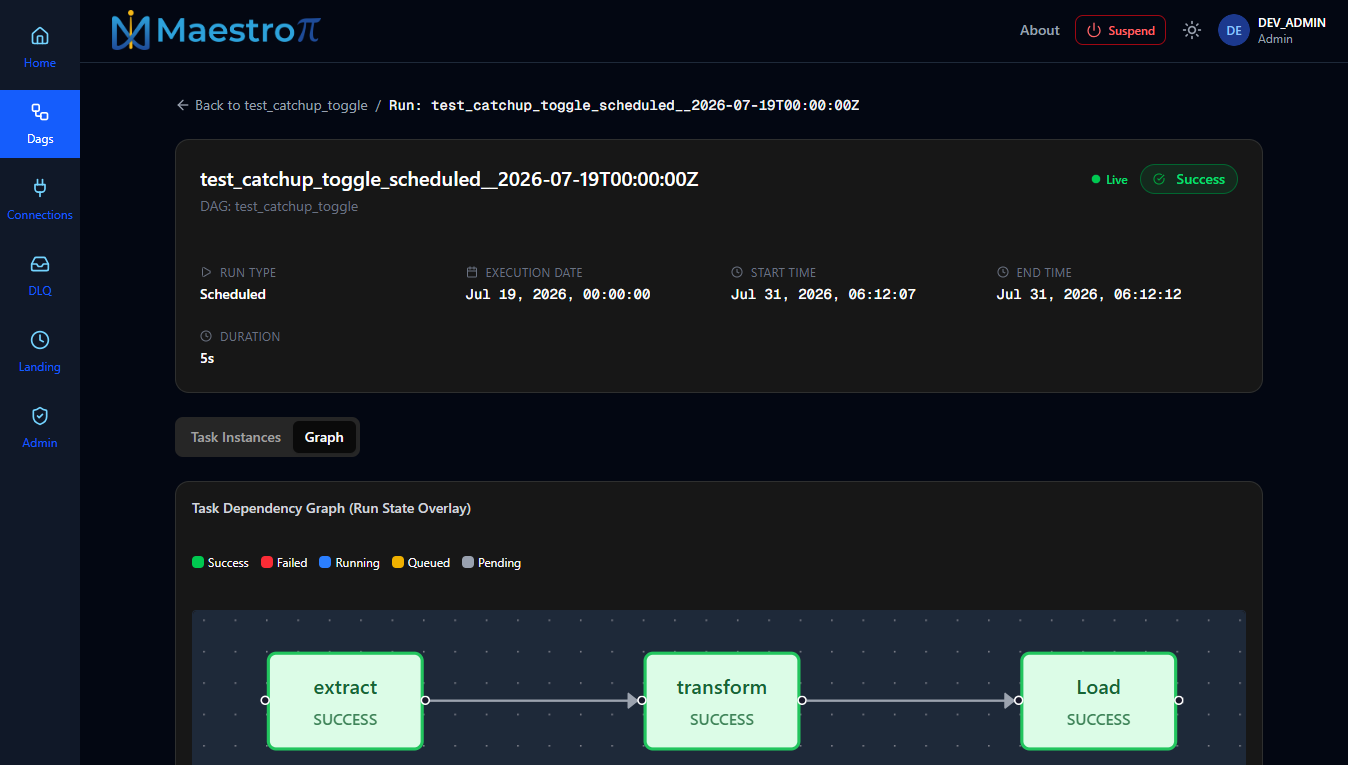

• Graph — the same dependency graph as the DAG's Graph tab, but colored by this run's actual task outcomes instead of static structure.
